| Unit Type | Fan Coil Unit |
|---|---|
| System Type | 2-Pipe FCU |
| Fan Motor Type | AC fan motor |
| Cooling capacity total kW (High/Medium/Low) | 4.9/4.0/2.8 |
| Heating capacity total kW (High/Medium/Low) | 5.6/4.4/3.0 |
| Sound pressure level (High/Medium/Low) | 45.0/39.0/30.0 |
| Dimensions (mm) | 285(H)x575(W)x575(D) |
| Weight (kg) | 19 |
| Power input (High/Medium/Low) | 0.118/0.089/0.062 |
| Power supply (Hz/V) | 1~/50/220-240 |

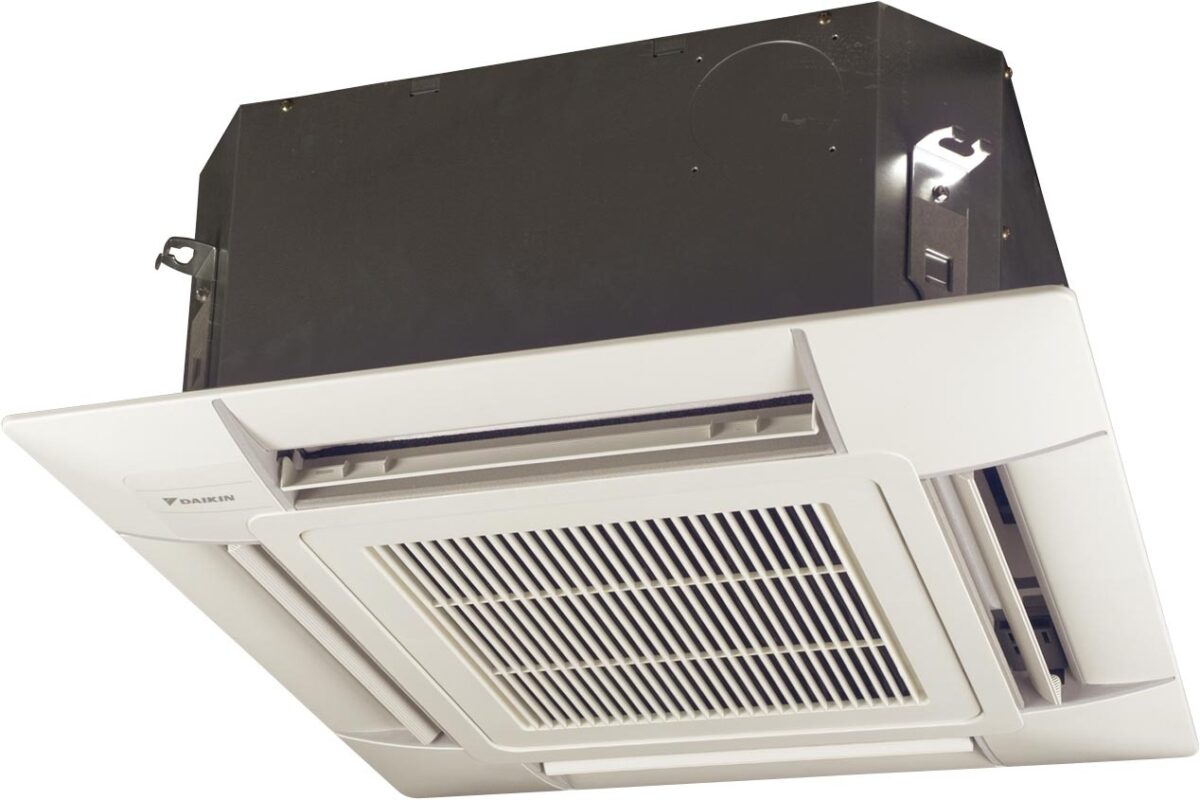

4-way blow ceiling mounted cassette FWF05BT
Product features
- Modern style decoration panel in white (RAL9010)
- Compact casing (570mm in width and depth) enables unit to fit flush into ceilings and match standard architectural modules, without cutting ceiling tiles
- Comfortable horizontal auto swing ensures draughtfree operation and prevents ceiling soiling
- Optional fresh air intake
- Possibility to shut 1 or 2 flaps for easy installation in corners
- Standard drain pump with 600mm lift increases flexibility and installation speed
Daikin Fan Coil Unit Catalogue 2025
