| Unit Type | Fan Coil Unit |
|---|---|
| System Type | 4-Pipe FCU |
| Fan Motor Type | AC fan motor |
| Cooling capacity total kW (High/Medium/Low) | 3.62/3.33/2.73 |
| Heating capacity total kW (High/Medium/Low) | 3.91/3.68/3.23 |
| Sound pressure level (High/Medium/Low) | 61.0/56.0/49.0 |
| Dimensions (mm) | 559(H)x754(W)x280(D) |
| Weight (kg) | 32.5 |
| Power input (High/Medium/Low) | 0.265/0.19/0.14 |
| Power supply (Hz/V) | 1~/50/220-240 |

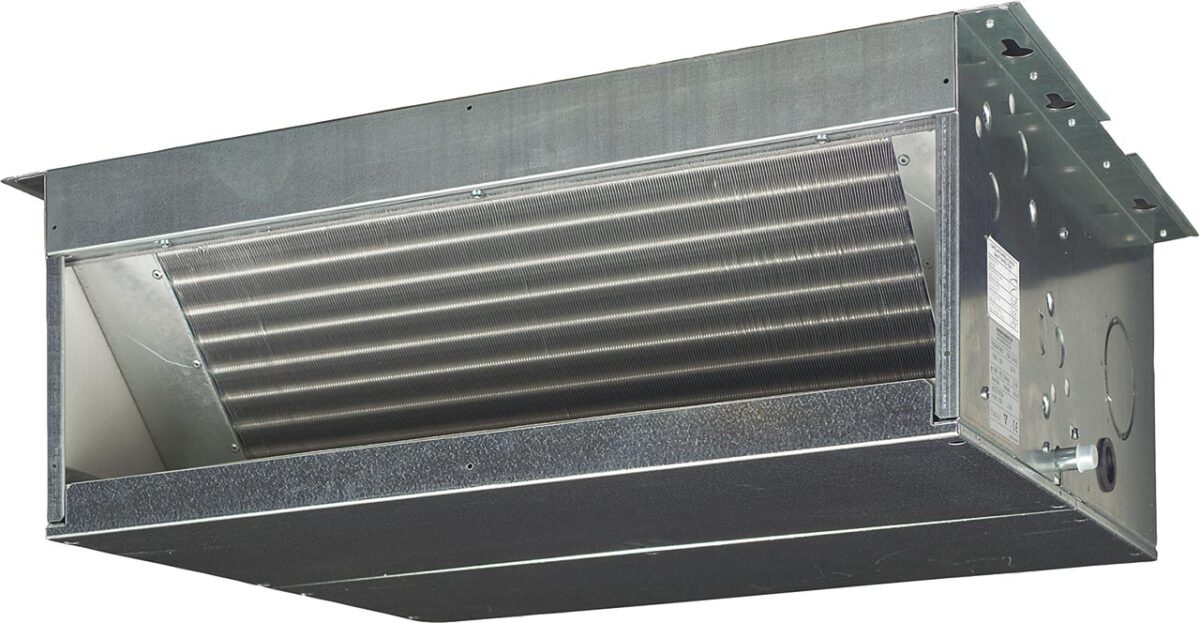

Concealed ceiling unit with high ESP FWD04AF
Product features
- Quick fixing system for wall or ceiling mounted installation
- Straight duct connector mounted to discharge side
- The air filter can easily be removed for cleaning
Daikin Fan Coil Unit Catalogue 2025
