Home leave operation
Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
-
Fan only
The unit can be used as fan, blowing air without heating or cooling.
-
Auto cooling-heating changeover (heat pump)
Automatically selects heating or cooling mode to achieve the set temperature.
-
Multi zoning (optional)
Allows up to 6 individual climate zones with one indoor unit
-
Whisper quiet
Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
-
Fan speed steps (3 steps + auto)
Allows to select up to the given number of fan speed.
-
Dry programme
Allows humidity levels to be reduced without variations in room temperature.
-
Air filter
Removes airborne dust particles to ensure a steady supply of clean air.
-
Weekly timer (optional)
Can be set to start heating or cooling anytime on a daily or weekly basis.
-

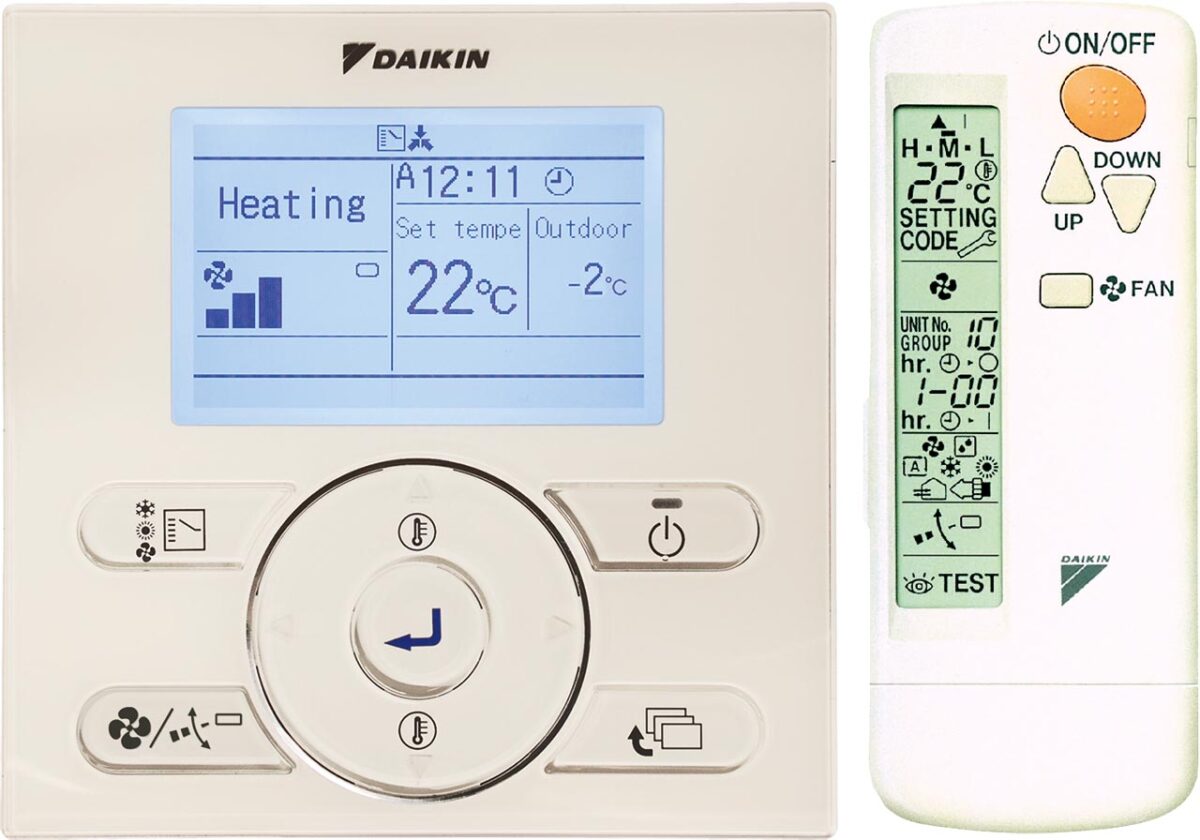

Infrared remote control (optional)
Starts, stops and regulates the air conditioner from a distance.
-
Wired remote control (optional)
Starts, stops and regulates the air conditioner.
-
Centralised control (optional)
Starts, stops and regulates several air conditioners from one central point.
-
Auto-restart
The unit restarts automatically at the original settings after power failure.
-
Self diagnosis
Simplifies maintenance by indicating system faults or operating anomalies.
-
Multi tenant (optional)
The indoor unit’s main power supply can be turned off when leaving the hotel or office building.
-
Drain pump kit (standard)
Facilitates condensation draining from the indoor unit.

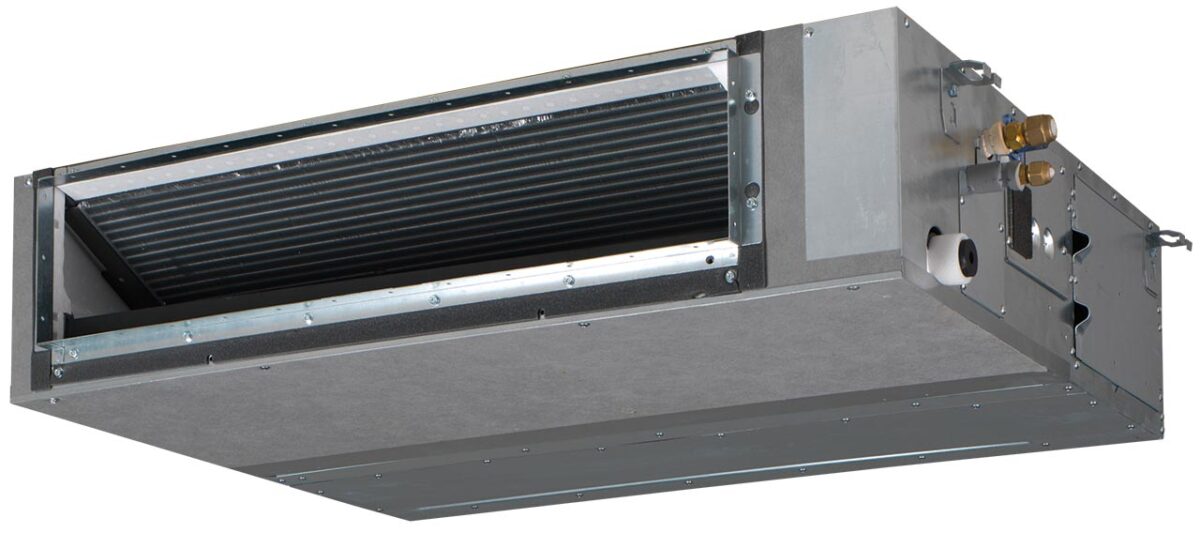

Concealed ceiling unit with medium ESP FXSQ63A
Product features
- Slimmest unit in class, only 245mm (300mm built-in height) and therefore narrow ceiling voids are no longer a challenge
- Quiet operation: down to 25dBA sound pressure level
- Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
- Possibility to change ESP via wired remote control allows optimisation of the supply air volume
- Discretely concealed in the wall: only the suction and discharge grilles are visible
- 15 class unit especially developed for small or well-insulated rooms, such as hotel bedrooms, small offices, etc.
- Multi zoning kit allows multiple individually-controlled climate zones to be served by one indoor unit
- Reduced energy consumption thanks to specially developed DC fan motor and drain pump
- Optional fresh air intake
- Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use or connection to optional suction grilles
- Standard built-in drain pump with 625mm lift increases flexibility and installation speed
| Unit Type | VRV Indoor Unit |
|---|---|
| Refrigerant Type/GWP | R-410A/2,087.5 |
| Cooling capacity (KW) | 7.1 |
| Heating capacity (KW) | 8.0 |
| External static pressure - Factory set / High | 30/150 |
| Dimensions (mm) | 245(H)x1,000(W)x800(D) |
| Weight (kg) | 35.5 |
| Power input - 50Hz (KW) | 0.101 |
| Power supply (Hz/V) | 1~/50/220-240 |
