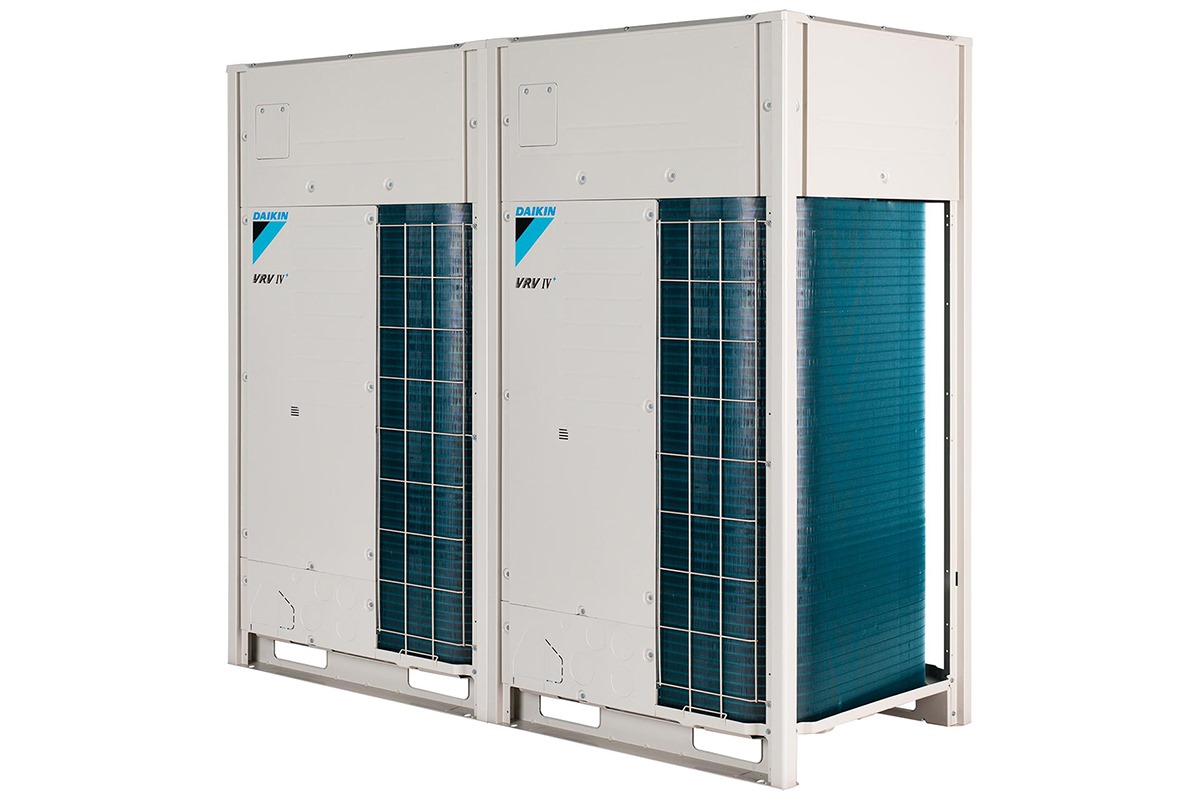

VRV IV – RXYQ18U5Y1B

Product Features

  • Covers all thermal needs of a building via a single point of contact: accurate temperature control, ventilation, hot water, air handling units and Biddle air curtains
  • Incorporates VRV IV standards & technologies: Variable Refrigerant Temperature, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor, …
  • Simplified installation & guaranteed optimal efficiency with automatic charging & testing
  • Wide piping flexibility: 30m indoor height difference, maximum piping length: 190m, total piping length: 1,000m
Category:

Benefits

Inverter

Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.



Replacement technology

Replacement technology

Quick and quality system replacement in the most cost effective way



Variable refrigerant temperature

Variable refrigerant temperature

The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.

Unit Type

VRV Outdoor Unit

System Type

2-Pipe System (Heat Pump)

Model

RXYQ18U5Y1B

Refrigerant Type/GWP

R-410A/2,087.5

Horse Power (HP)

18

Cooling capacity (KW)

50.4

Heating capacity (KW)

50.4

SEER

6.0

SCOP

4.2

Sound pressure level - Cooling (dBA)

62

Dimensions (mm)

1685(H)x1240(W)765(D)

Weight (kg)

314

Power input - 50Hz (KW)

14.22

Power supply (Hz/V)

3N/50/380-415

Catalogue

Daikin VRV Catalogue 2024
