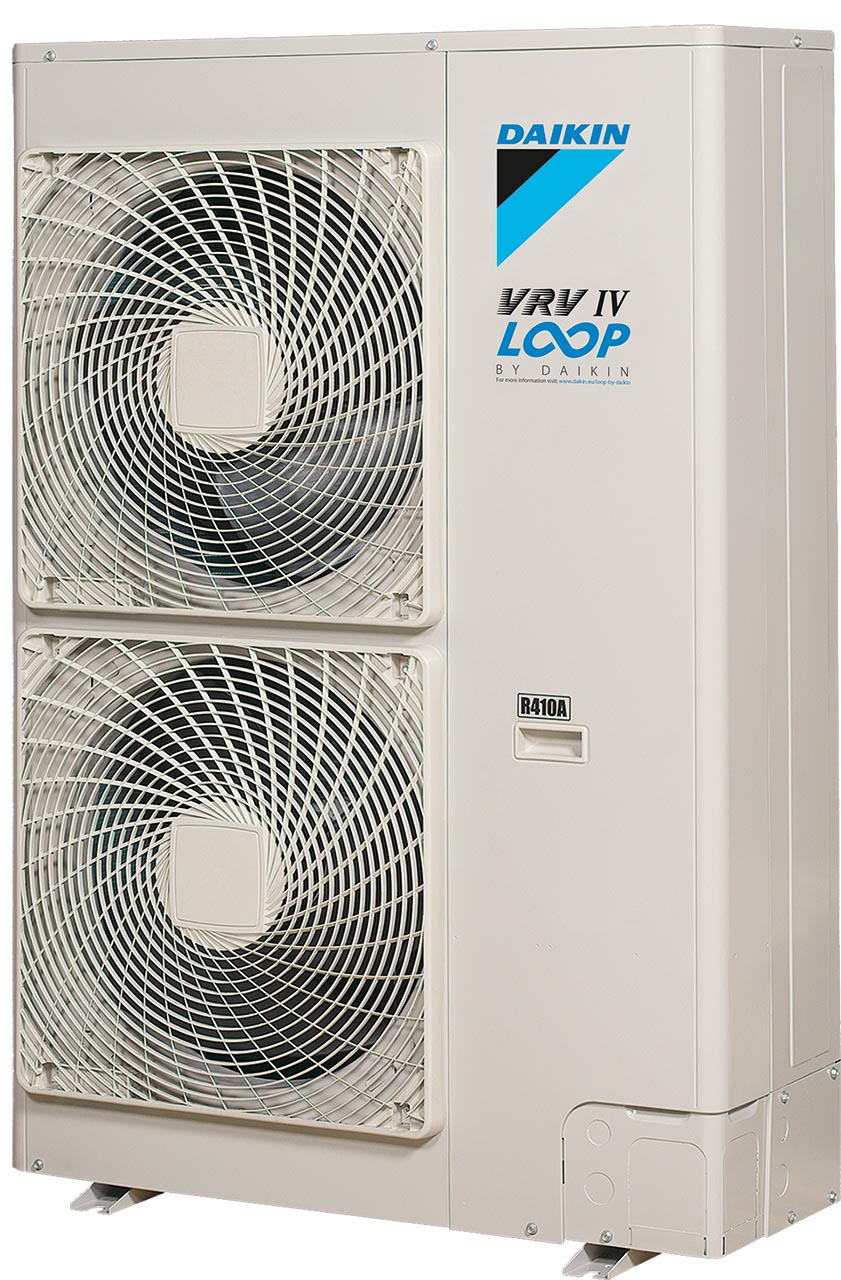

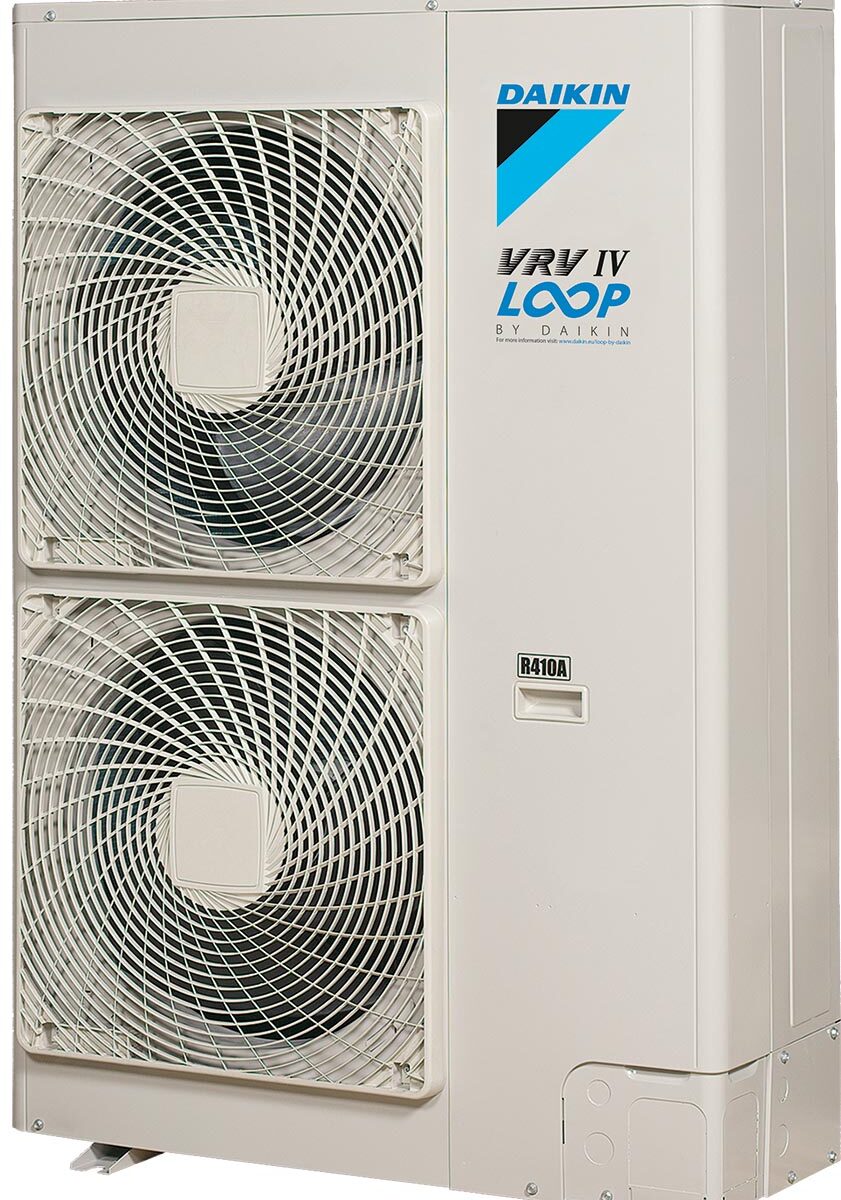

VRV IV – RXYSQ5T8VB9

By choosing this product with LOOP by Daikin you support the reuse of refrigerant
Space saving trunk design for flexible installation
Covers all thermal needs of a building via a single point of contact: accurate temperature control, ventilation, air handling units and Biddle air curtains
Wide range of indoor units: either connect VRV or stylish indoor units such as Daikin Emura, Perfera …
Incorporates VRV IV standards & technologies: Variable Refrigerant Temperature and full inverter compressors
Customize your VRV for best seasonal efficiency & comfort with the weather dependant Variable Refrigerant Temperature function. Increased seasonal efficiency with up to 28%. No more cold draft by supply of high outblow temperatures
3 steps in night quiet mode to reduce sound levels at night
Possibility to limit peak power consumption between 30 and 80%, for example during periods with high power demand
Connectable to all VRV control systems
Keep your system in top condition via the Daikin Cloud Service: 24/7 monitoring for maximum efficiency, extented lifetime and immediate service support thanks to failure prediction

Category: VRV Outdoor Unit

Benefits

Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Variable refrigerant temperature

The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.

Unit Type	VRV Outdoor Unit
System Type	2-Pipe System (Heat Pump)
Model	RXYSQ5T8VB9
Refrigerant Type/GWP	R-410A/2,087.5
Horse Power (HP)	5
Cooling capacity (KW)	14
Heating capacity (KW)	14
SEER	6.8
SCOP	4.6
Sound pressure level - Cooling (dBA)	51
Dimensions (mm)	1,345(H)x900(W)x320(D)
Weight (kg)	104
Power input - 50Hz (KW)	3.27
Power supply (Hz/V)	1~/50/220-240
